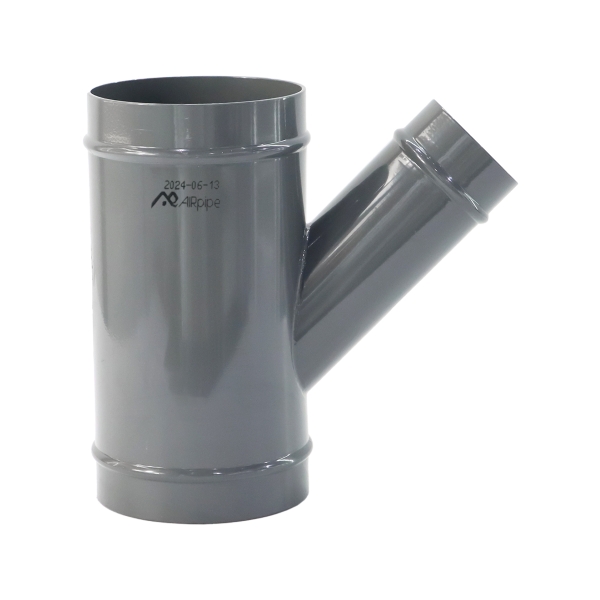

Lateral Reducing Wye

The Lateral Reducing Wye is a specialized aluminum fitting designed for AIRpipe compressed air systems, enabling a smooth 45° branch from a main line while reducing pipe size for downstream connections. Engineered for high performance and easy installation, it’s ideal for optimizing airflow in large-scale industrial setups.

Reducing Pipe Connector

Clear

Add to Quote

SKU: N/A Categories: Connectors, Wye Connectors Brand: AIRpipe

Description
Additional information
CAD Files

Key Features:

Pipe Size Range: Available for main line sizes of 4", 6", and 8" outer diameter.
Branch Reduction: Provides a reduced outlet for connecting smaller diameter piping or equipment.
Union Connectors: Supplied with three union connectors for fast, secure, and leak-free assembly.
Material: Constructed from high-quality aluminum for corrosion resistance and long-term durability.
Flow Efficiency: Internal geometry designed to minimize pressure drop and turbulence.
Installation: Compatible with AIRpipe’s modular system; requires no welding or threading.

Applications:

Ideal for branching off to workstations, machinery, or auxiliary lines in compressed air systems.
Commonly used in manufacturing, automotive, and industrial facilities.

Additional information

Weight	N/A
Reducing Pipe Connector	100mm (4") to 80mm (3"), 150mm (6") to 100mm (4"), 150mm (6") to 80mm (3"), 200mm (8") to 100mm (4"), 200mm (8") to 150mm (6")
AIRpipe Certification	ASME, ASTM, CE, CRN, EN, ISO 14001, ISO 8573-1, ISO 9001, TS, TUV, UL
AIRpipe Outer Dimension	100mm (4"), 150mm (6"), 200mm (8")
Color	Gray
Connection	Lugged Ring Clamping Style
Material	Stainless Steel
Pressure	188 PSI, 232 PSI, 300 PSI, 29.9 inHg (99% vacuum)
Temperature	-4°F to +176°F
