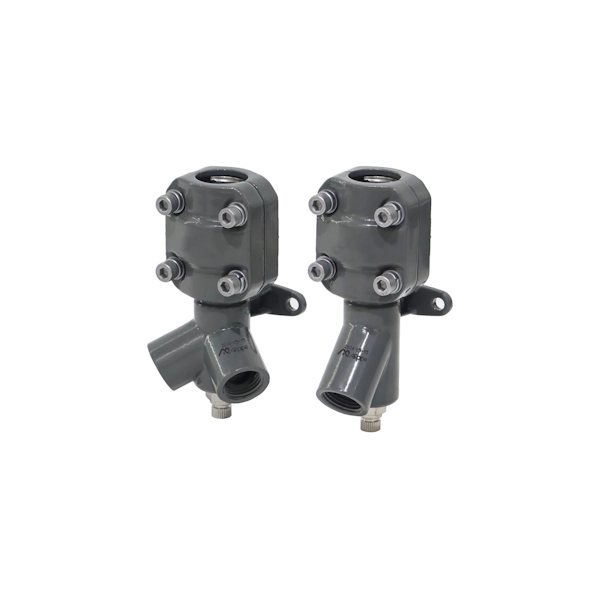

One and Two Port Angled Wall Bracket
One & Two Port Angled Wall Brackets with Venting Valve
The One and Two Port Angled Wall Brackets are high-performance components specifically designed for use in AIRpipe aluminum compressed air systems. These brackets offer a reliable and efficient solution for wall-mounted pipe drops, combining robust construction, smart design, and integrated safety features to meet the demands of modern industrial environments.
Crafted from corrosion-resistant all-aluminum, these brackets are built to withstand harsh conditions while maintaining a lightweight profile for easy handling and installation. Their 45-degree angled configuration ensures optimal alignment of hoses and fittings, reducing mechanical stress and improving accessibility in tight or complex layouts.
Each bracket is available in either a one-port or two-port configuration, providing flexibility for various system designs. The quick connection feature allows for fast and secure installation, minimizing downtime and labor costs. Internally, the high-flow design ensures maximum airflow with minimal pressure drop, supporting the overall efficiency and performance of the compressed air system.
To enhance safety and maintenance convenience, each bracket includes an integrated 1/4″ venting valve, allowing for controlled depressurization before disconnection. Standard NBR seals provide reliable sealing for general applications, while high-temperature FKM seals are available upon request for more demanding environments.
These brackets are purpose-built to integrate seamlessly with AIRpipe systems, making them an ideal choice for facilities seeking durable, high-flow, and easy-to-install wall-mounted solutions.
Key Features:
- Configurations: Available in One Port and Two Port models.
- Angled Design: 45° orientation ensures optimal hose alignment and minimizes connection stress.
- Threading:
- Ports: Each port features 1/2" Female NPT threads.
- Pipe Compatibility: Connects 3/4" and 1" aluminum pipe to 1/2" Female NPT.
- Quick Connection: Designed for fast and secure installation, reducing downtime and labor.
- High Flow Design: Engineered to support maximum airflow, ensuring optimal system performance.
- Material: Constructed from all-aluminum body for lightweight durability and corrosion resistance.
- Sealing Options:
- Standard: Equipped with NBR seals for general-purpose use.
- Optional: High-temperature FKM seals available upon request for demanding environments.
- Integrated Venting Valve: Includes a 1/4" venting valve for safe depressurization during maintenance or disconnection.
- System Compatibility: Fully compatible with the AIRpipe piping system.
Additional information
| Weight | N/A |
|---|---|
| Pipe to Angled Female NPT | 20mm (3/4") Pipe to 1/2" Angled One-Port Female NPT, 20mm (3/4") Pipe to 1/2" Angled Two-Port Female NPT, 25mm (1") Pipe to 1/2" Angled One-Port Female NPT, 25mm (1") Pipe to 1/2" Angled Two-Port Female NPT |
| AIRpipe Certification | ASME, ASTM, CE, CRN, EN, ISO 14001, ISO 8573-1, ISO 9001, TS, TUV, UL |
| Color | Gray, Silver Metallic |
| Connection | Grab Ring Clamping Style, Threaded |
| Features | Wall Mounted |
| Material | Aluminum |
| Pressure | 188 PSI, 232 PSI, 300 PSI, 29.9 inHg (99% vacuum) |
| Temperature | -4°F to +176°F |
