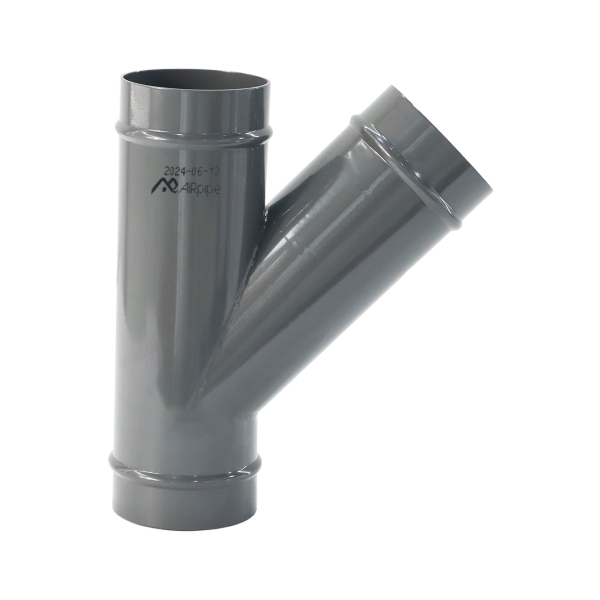

Equal Lateral Wye
The Equal Lateral Wye is a high-performance fitting engineered for use in industrial compressed air systems, specifically designed to integrate seamlessly with AIRpipe aluminum piping. Its symmetrical Y-shaped configuration allows for efficient and balanced airflow distribution between three pipe sections, making it ideal for branching off main lines while maintaining consistent pressure and flow.
Manufactured from premium stainless steel, this fitting offers exceptional mechanical strength and corrosion resistance, even in harsh operating environments. The gray powder-coated finish not only enhances durability but also provides a clean, professional appearance suitable for exposed installations in manufacturing, automotive, and processing facilities.
Each Equal Lateral Wye is supplied with three union connectors, ensuring quick, secure, and leak-free assembly without the need for welding or threading. The union connectors are designed to work with AIRpipe’s lugging system, streamlining installation and reducing downtime.
Key Features:
- Material: Industrial-grade stainless steel for long-term durability and corrosion protection.
- Finish: Powder coated gray for enhanced surface protection and visual consistency.
- Design: Equal-sized outlets at 45° angles for smooth, balanced airflow and minimal turbulence.
- Installation: Includes three union connectors for fast and reliable connection to aluminum piping.
- System Compatibility: Fully compatible with AIRpipe aluminum compressed air systems.
Available Sizes:
- 2-1/2"
- 3"
- 4"
- 6"
- 8"
Typical Applications:
- Branching off main compressed air lines in large-scale industrial facilities.
- Creating equal flow paths for equipment zones or process areas.
- Enhancing system layout flexibility while maintaining optimal performance.
Additional information
| Weight | N/A |
|---|---|
| AIRpipe Outer Dimension | 100mm (4"), 150mm (6"), 200mm (8"), 63mm (2-1/2"), 80mm (3") |
| AIRpipe Certification | ASME, ASTM, CE, CRN, EN, ISO 14001, ISO 8573-1, ISO 9001, TS, TUV, UL |
| Color | Gray |
| Connection | Lugged Ring Clamping Style |
| Material | Stainless Steel |
| Pressure | 188 PSI, 232 PSI, 300 PSI, 29.9 inHg (99% vacuum) |
| Temperature | -4°F to +176°F |
Use AIRpipe products in your next project design.
Download the drawing files in AutoCAD or STEP formats for your design software.
